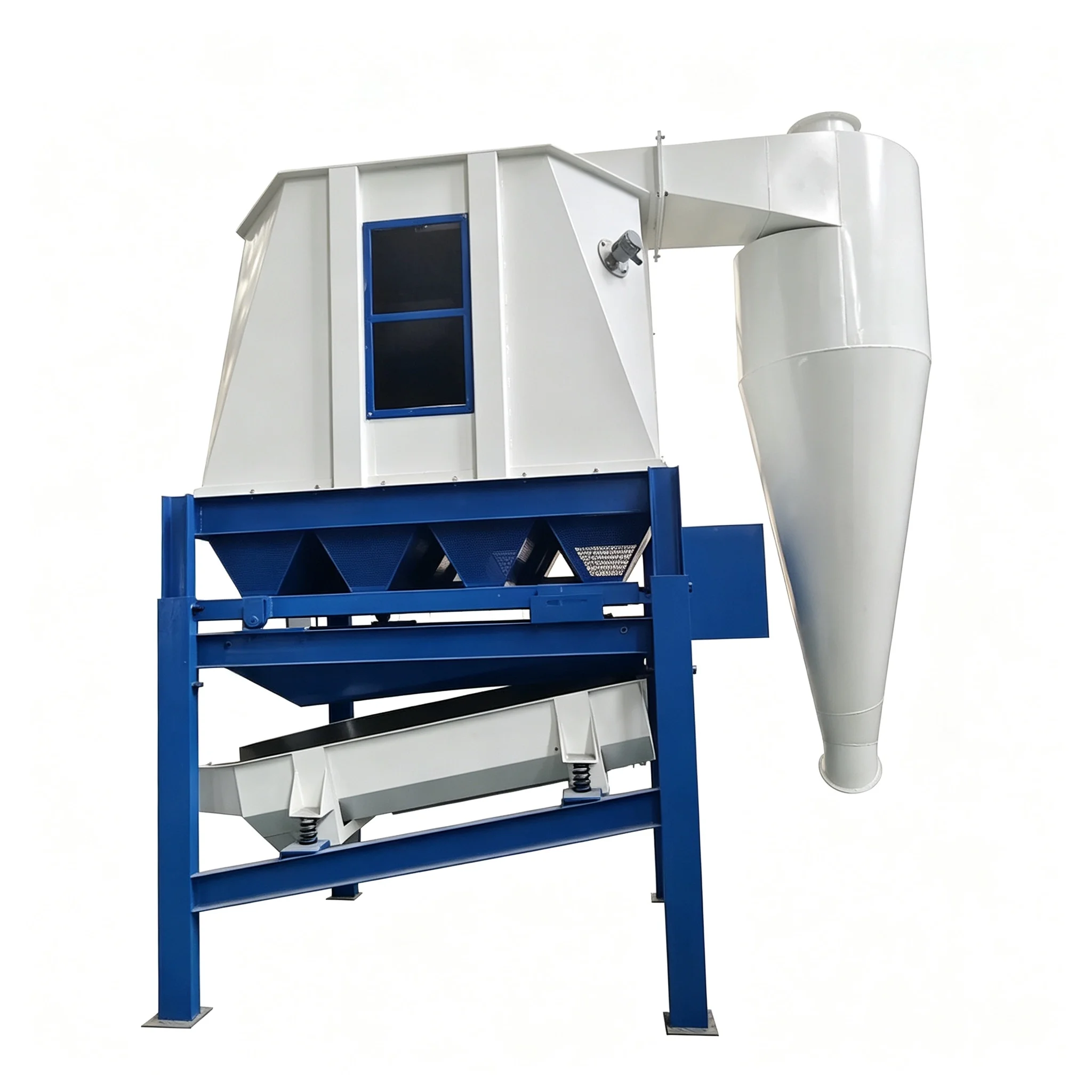

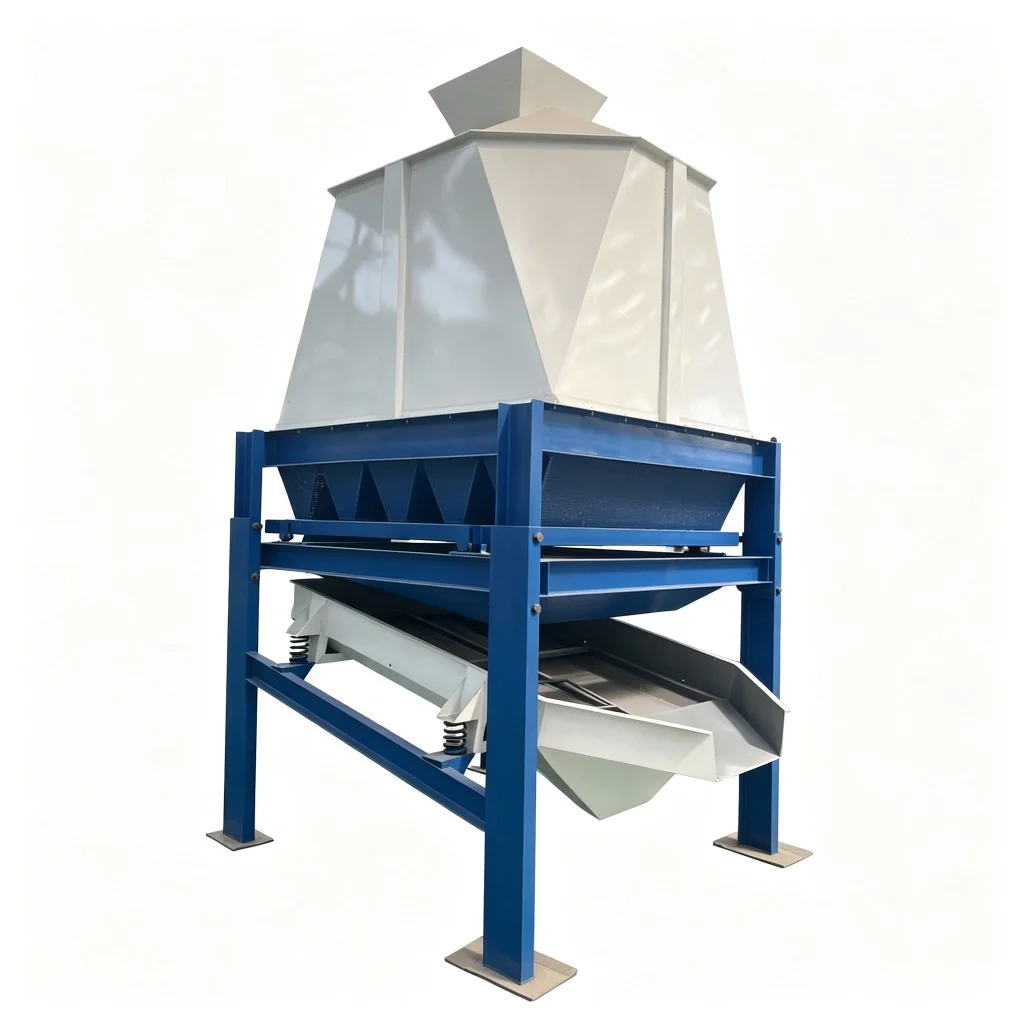

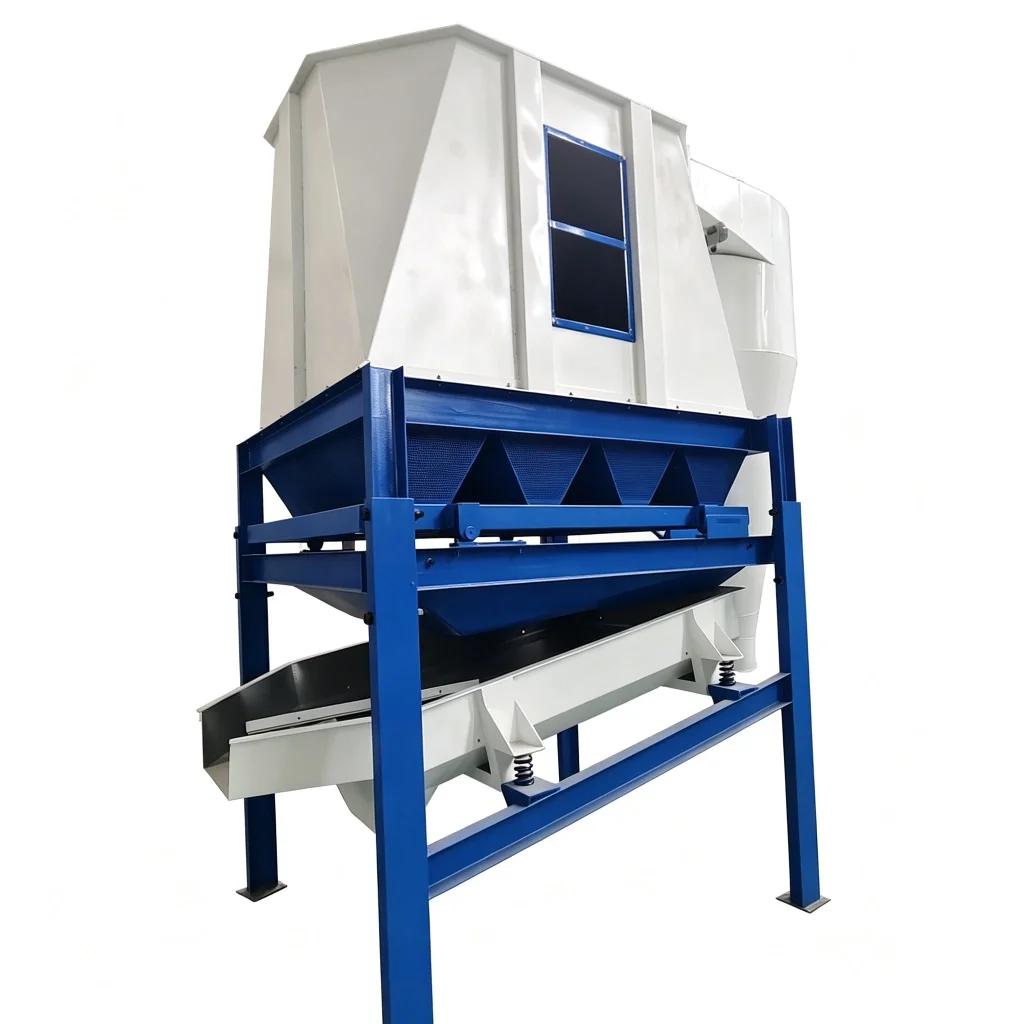

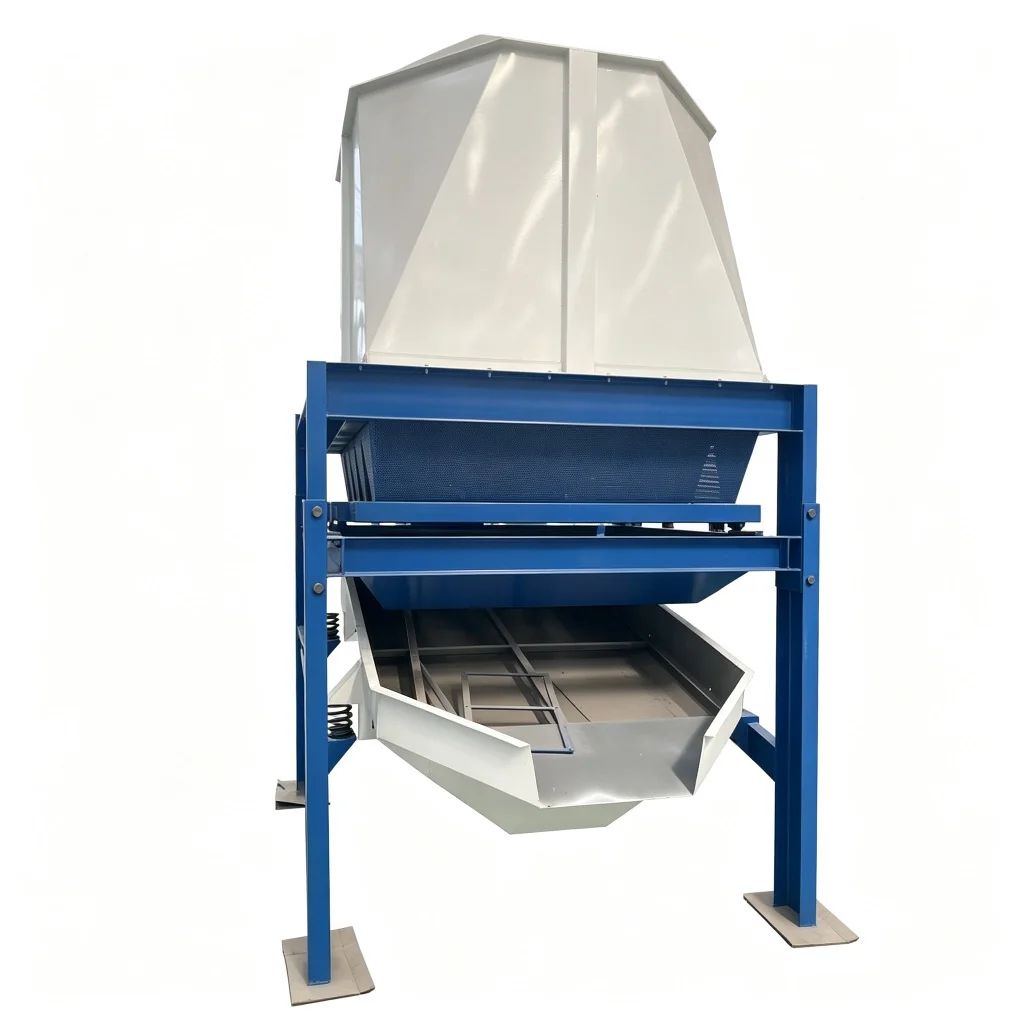

Counter Flow Cooler

PRODUCT PARAMETERS

  • Model: GLT1.2/GLT1.5/GLT5/GLT4/GLT6
  • Cooldown time(min): >=10min
  • Material temperature after cooling(°C）: Indoor humidity ±10-15°C
  • Total power（kW）: 0.18+4/0.25+5.5/0.25+15/0.37+22/0.37+37
  • Air volumem3/h:5000m3/h/9000m3/h/13500m3/h/18000m3/h/27000m3/h
Description
FAQs
Request A Quote

Description

Brief introduction
Counter flow cooler is one of the most advanced new cooler in international currently; it uses the principle of countercurrent, cooling the high temperature and high humidity materials. the high temperature pass through the material layer vertically. and touch the materials first then the wind turn hot gradually. The wind direction is opposite with the material direction, make the pellets cooled gradually. will not cause the pellets crack due to its sudden cooling by touching with the cold wind. The air enters into the cooler from its bottom fully, wide entering area, high utilization rate, low energy consumption, easy operation, the cooling effect is remarkable. pellets cooled sufficiently and evenly, using a unique slide valve is a mechanical vibration nesting, smooth operation, nesting smooth, granular temperature after cooling is for room temperature±10‑15°C.

ModelCapacityCooling volume（m3）Cooldown time(min)Material temperature after cooling(°C）Total power（kW）air volumem3/h
GLT1.20.8-1.2t/h1.2>=10minIndoor humidity ±10-15°C0.18+45000m3/h
GLT1.51.2-2.0t/h1.5>=10minIndoor humidity ±10-15°C0.25+5.59000m3/h
GLT42.0-4.0t/h2.5>=10minIndoor humidity ±10-15°C0.25+1513500m3/h
GLT54.0-6.0t/h4>=10minIndoor humidity ±10-15°C0.37+2218000m3/h
GLT65.0-8.0t/h6>=10minIndoor humidity ±10-15°C0.37+3727000m3/h

FAQs

Our pellet mill processes wood sawdust, wood chips, straw, rice husk, peanut shell, bamboo dust, fruit tree branches and other biomass waste. Different dies are available for various feedstock. Raw materials should be crushed to 3‑5 mm with moisture 10‑15% for premium‑quality pellets. A dryer is required for high‑moisture materials.

o prepare an accurate proposal, please provide:

1.raw material type; 2. target output per hour; 3.raw‑material moisture; 4. local voltage & frequency; 5. workshop size; 6.budget.

Our engineers supply equipment list, layout drawing and budget for free. Material test is available at our factory.

Yes. Motors can be customized to match local voltage & frequency (380V/415V/440V, 50Hz/60Hz) for different countries.

We are direct manufacturer with full‑set machining & assembly workshop. Factory visits are warmly welcome; virtual video tour is available. Material test run is supported.

Common wear parts are in stock and can be shipped together with main machine. For separate orders: air freight 7‑15 days, sea freight 30‑45 days.
