Belt Conveyor

PRODUCT PARAMETERS

  • Conveying Capacity: 2‑35 t/h
  • Belt Width: 400‑1400 mm
  • Conveying Length: 1‑60 m (customizable)

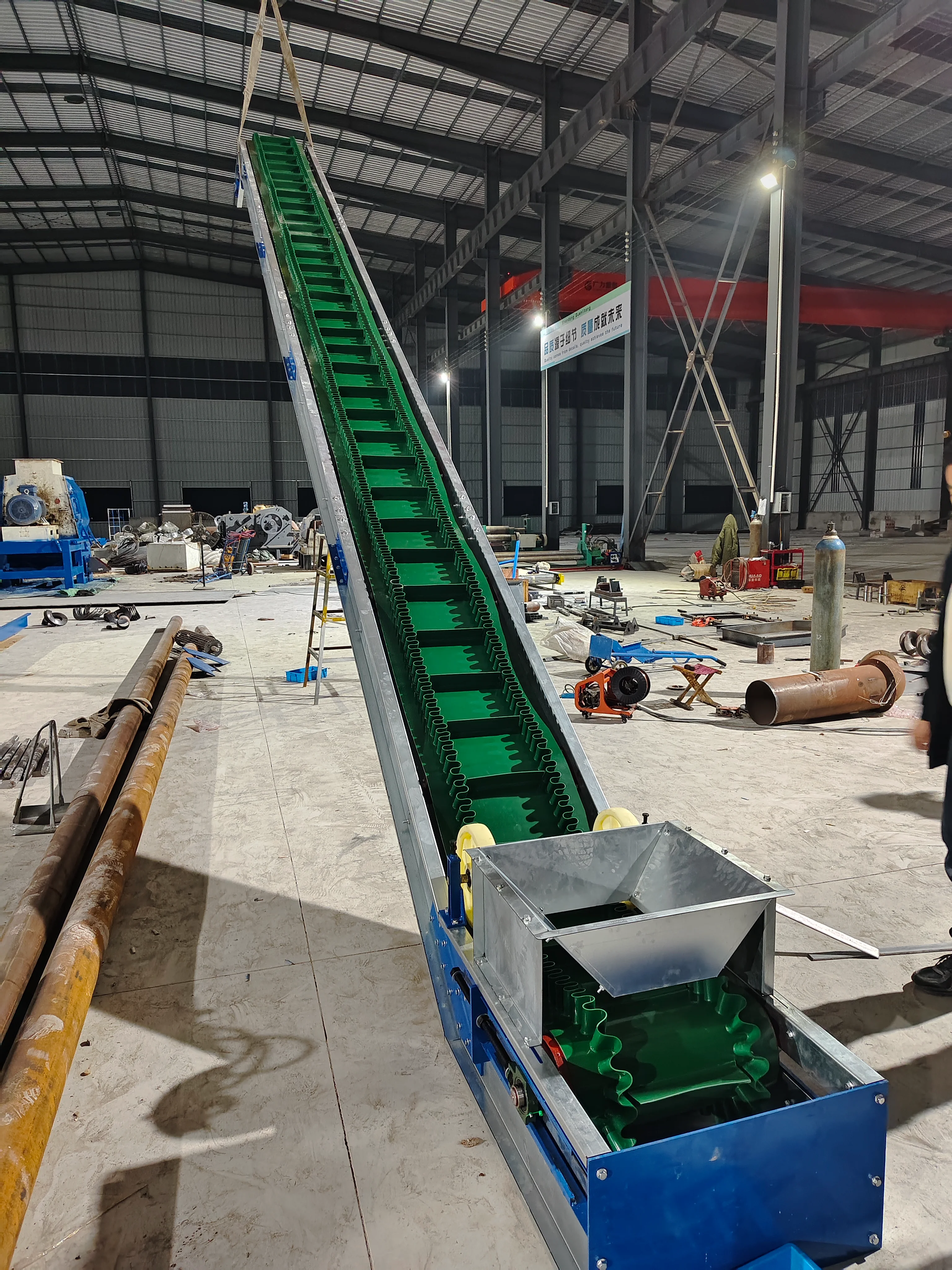

  • Inclination Angle: 0‑25°, max 45° with cleated belt
  • Belt Speed: 0.6‑1.6 m/s
  • Drive Mode: Fixed‑speed / Variable‑frequency optional

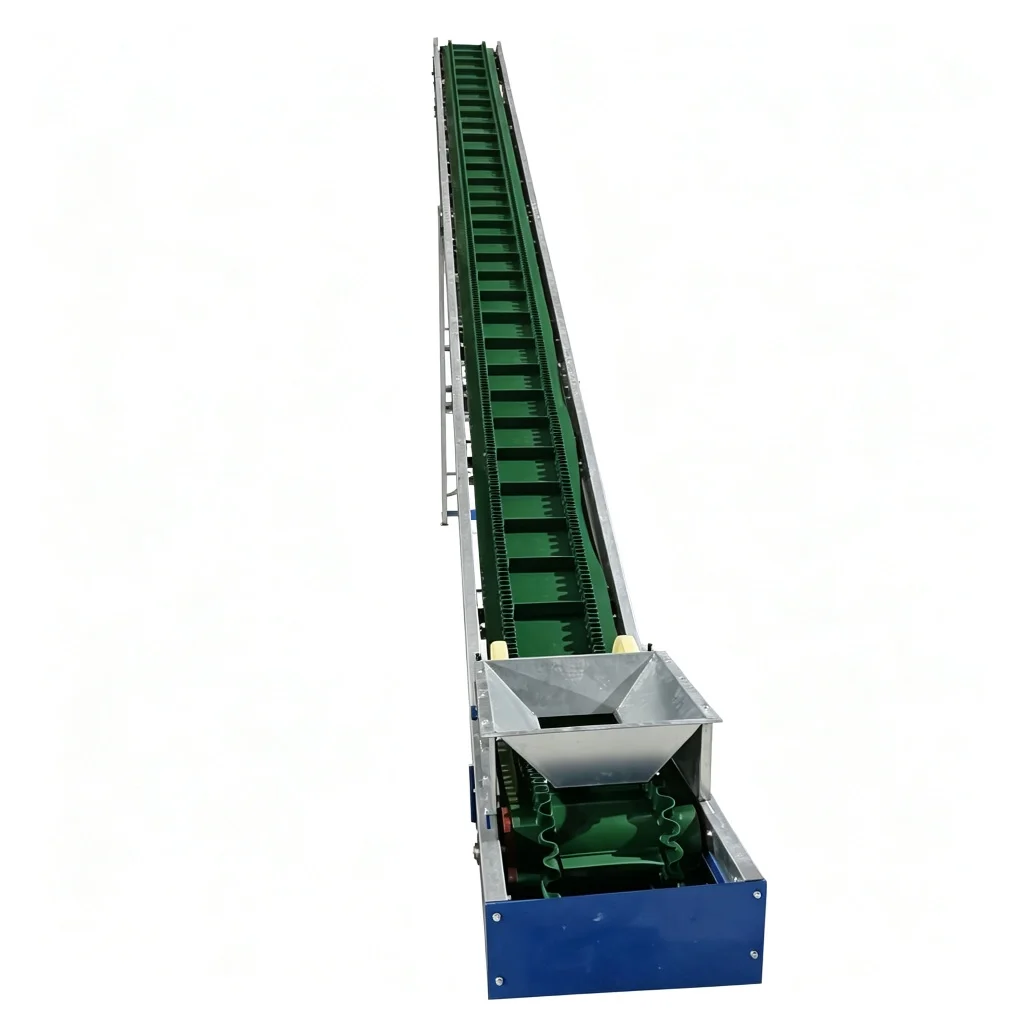

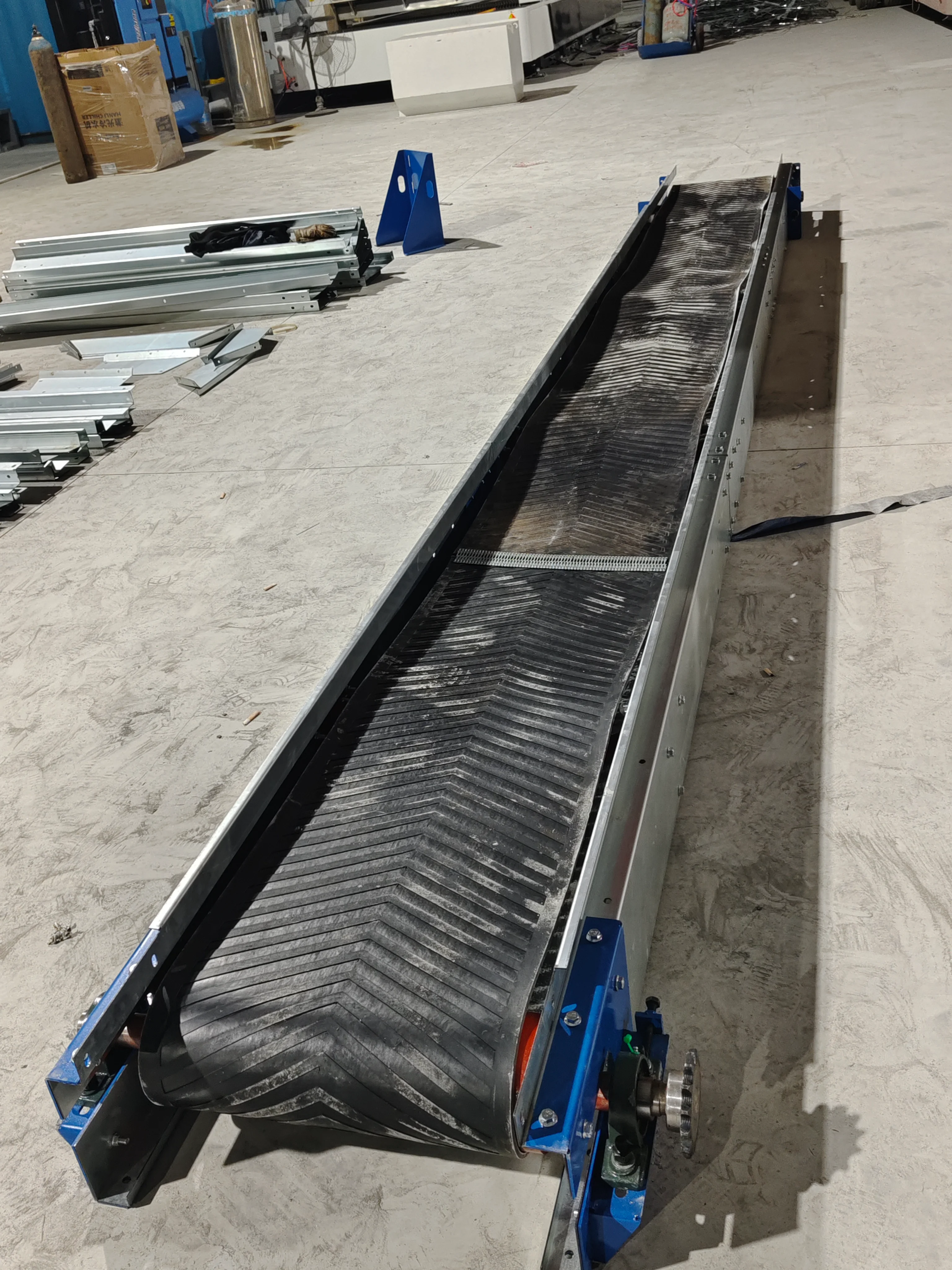

  • Belt Material: Wear‑resistant rubber; cleated side‑wall belt optional
  • Frame Material: Carbon steel painted
  • Applicable Material: Sawdust, wood chips, straw, finished biomass pellets
Description
FAQs
Request A Quote

Description

Product Introduction

Our belt conveyor is widely‑used bulk‑material conveying equipment for biomass pellet plants. It transports sawdust, wood chips, straw and finished pellets horizontally or inclined between different processing machines.

Adopting troughed roller design and wear‑resistant rubber belt, it realizes large‑capacity low‑spillage material transfer. Cleated side‑wall belt is optional for steep‑angle lifting. Optional VFD speed adjustment stably controls feeding volume. Heavy‑duty carbon‑steel frame guarantees long‑time continuous operation.

Modular structure supports flexible layout for new‑built or upgraded pellet lines. Standard flange connection for easy installation. It can run independently or integrate with crushers, dryers and pellet mills for full‑automatic production. Custom belt width, length and throughput are available according to site conditions.

Technical Specifications

ItemSpecification
Conveying Capacity2‑35 t/h
Belt Width400‑1400 mm
Conveying Length1‑60 m (customizable)
Inclination Angle0‑25°, max 45° with cleated belt
Belt Speed0.6‑1.6 m/s
Drive ModeFixed‑speed / Variable‑frequency optional
Belt MaterialWear‑resistant rubber; cleated side‑wall belt optional
Frame MaterialCarbon steel painted
Applicable MaterialSawdust, wood chips, straw, finished biomass pellets

FAQs

Our pellet mill processes wood sawdust, wood chips, straw, rice husk, peanut shell, bamboo dust, fruit tree branches and other biomass waste. Different dies are available for various feedstock. Raw materials should be crushed to 3‑5 mm with moisture 10‑15% for premium‑quality pellets. A dryer is required for high‑moisture materials.

o prepare an accurate proposal, please provide:

1.raw material type; 2. target output per hour; 3.raw‑material moisture; 4. local voltage & frequency; 5. workshop size; 6.budget.

Our engineers supply equipment list, layout drawing and budget for free. Material test is available at our factory.

Yes. Motors can be customized to match local voltage & frequency (380V/415V/440V, 50Hz/60Hz) for different countries.

We are direct manufacturer with full‑set machining & assembly workshop. Factory visits are warmly welcome; virtual video tour is available. Material test run is supported.

Common wear parts are in stock and can be shipped together with main machine. For separate orders: air freight 7‑15 days, sea freight 30‑45 days.
