Rotary Trommel Screen

PRODUCT PARAMETERS

  • Model:GLT100*2/GLT130*3/GLT150*4/GLT180*5/GLT200*6
  • Capacity（T/H）:1-2/1.5-4/3-5/5-10/8-12
  • Size(mm):2800*1300*1460/4420*1500*3800/5160*1700*4400/6300*2200*2600/7000*2500*5000
  • Power(KW):1.5/3/4/5.5
Description
FAQs
Request A Quote

Description

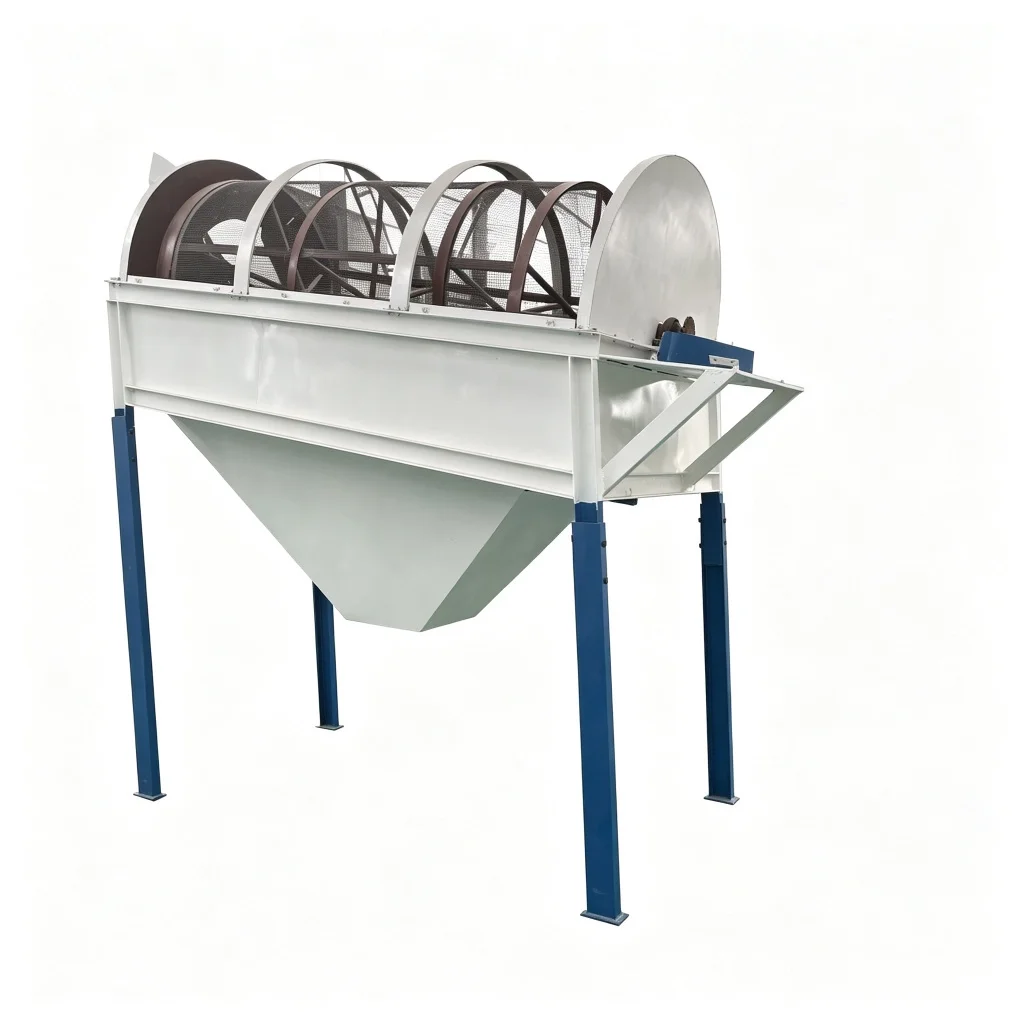

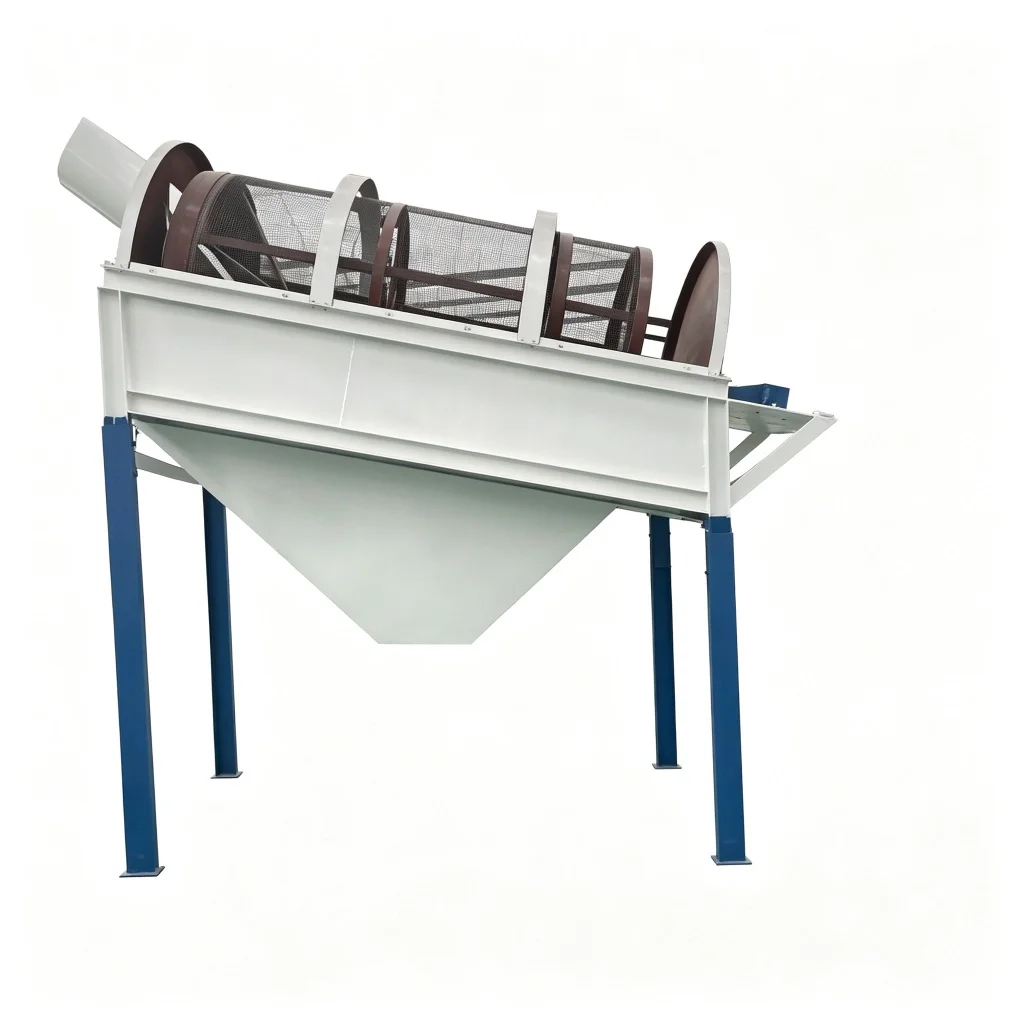

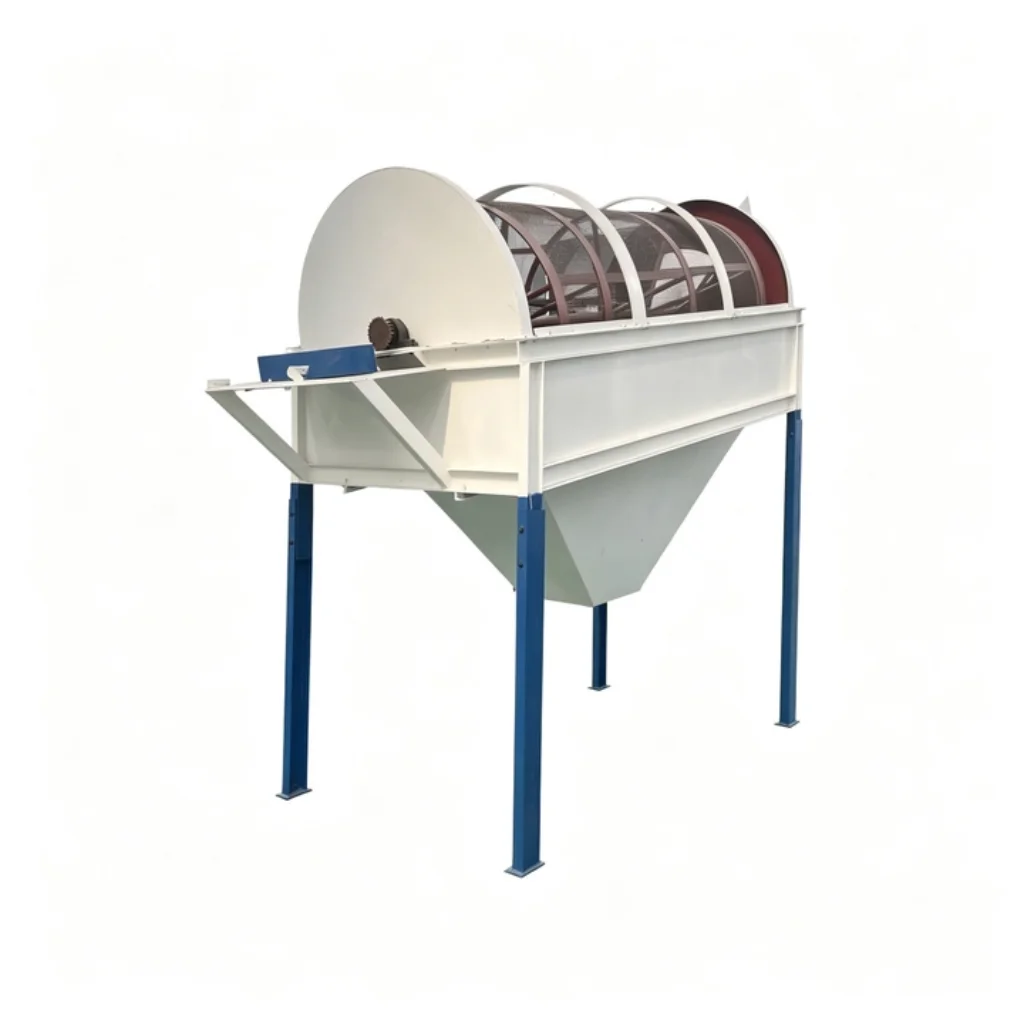

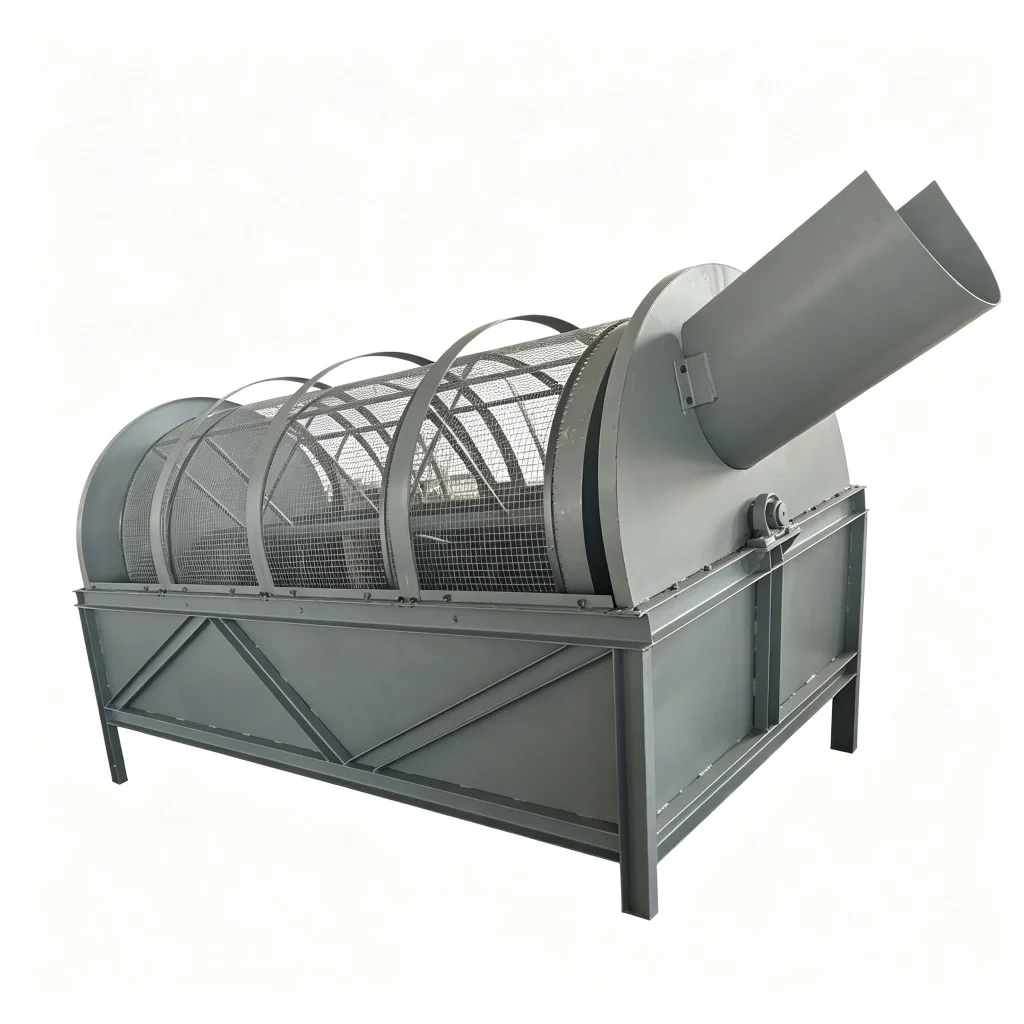

Rotary screener mainly makes up with motor, reducer, roller device, frame, sealing cover, inlet and outlet. The roller device is tilted on the frame. The motor is connected with roller device through shaft coupling by the reducer, and drive roller device around its axis of rotation. When the materials fed in the roller device, due to tilt and rotation of roller device,the material on the screen surface roll and rotate. Finally the qualified materials will be discharged through the discharge port at the bottom of roller, the unqualified materials will be discharged through the discharge port at the end of the roller device. Due to the material flip and scroll, the material stuck in screener will be pop up, to prevent the mesh plug.

ModelCapacity（T/H）Size(mm)Power(KW)
GLT100*21-22800*1300*14601.5
GLT130*31.5-44420*1500*38003
GLT150*43-55160*1700*44004
GLT180*55-106300*2200*26004
GLT200*68-127000*2500*50005.5

FAQs

Our pellet mill processes wood sawdust, wood chips, straw, rice husk, peanut shell, bamboo dust, fruit tree branches and other biomass waste. Different dies are available for various feedstock. Raw materials should be crushed to 3‑5 mm with moisture 10‑15% for premium‑quality pellets. A dryer is required for high‑moisture materials.

o prepare an accurate proposal, please provide:

1.raw material type; 2. target output per hour; 3.raw‑material moisture; 4. local voltage & frequency; 5. workshop size; 6.budget.

Our engineers supply equipment list, layout drawing and budget for free. Material test is available at our factory.

Yes. Motors can be customized to match local voltage & frequency (380V/415V/440V, 50Hz/60Hz) for different countries.

We are direct manufacturer with full‑set machining & assembly workshop. Factory visits are warmly welcome; virtual video tour is available. Material test run is supported.

Common wear parts are in stock and can be shipped together with main machine. For separate orders: air freight 7‑15 days, sea freight 30‑45 days.
