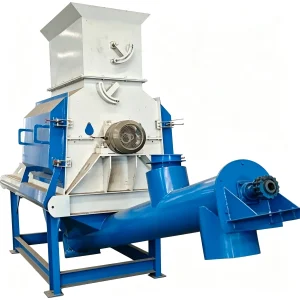

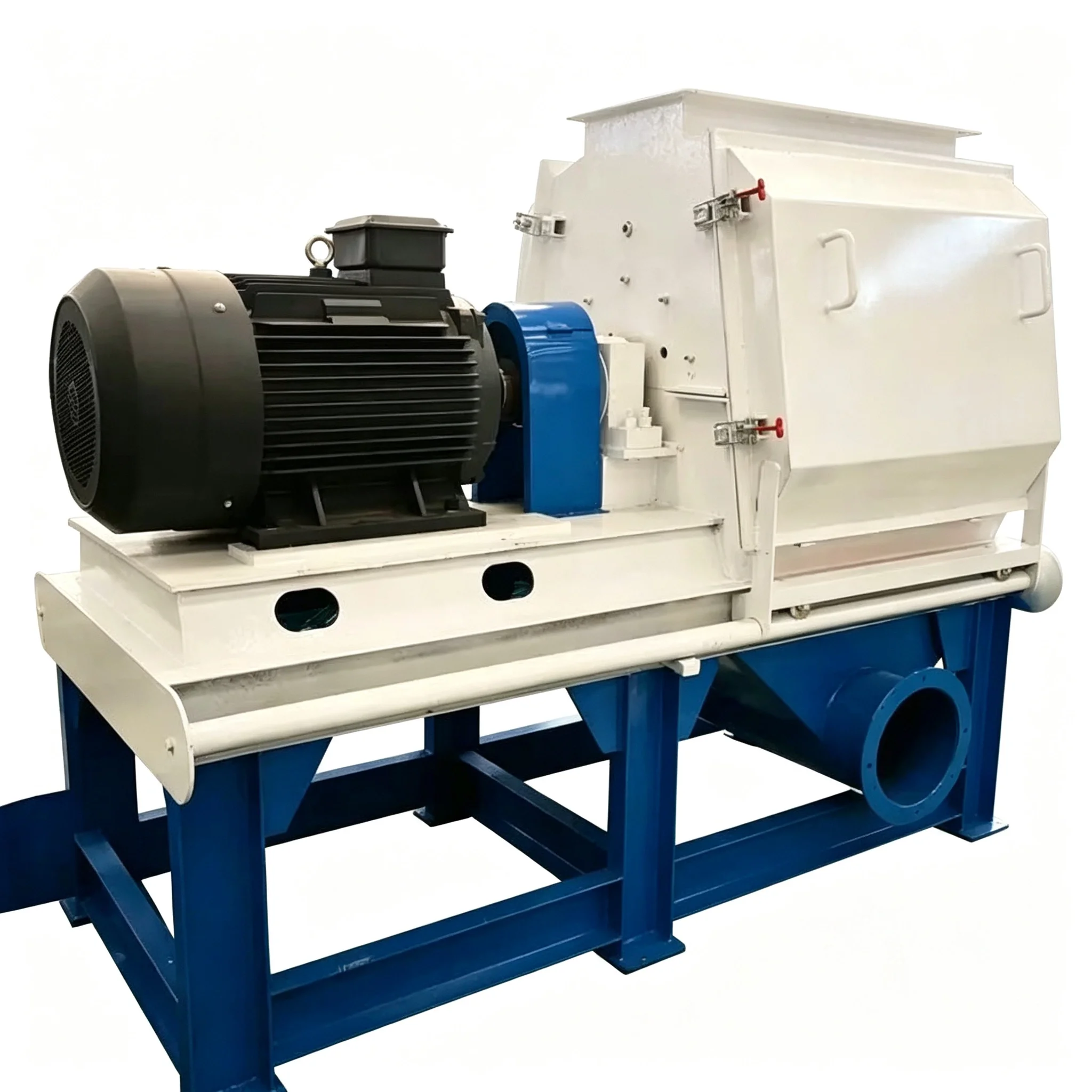

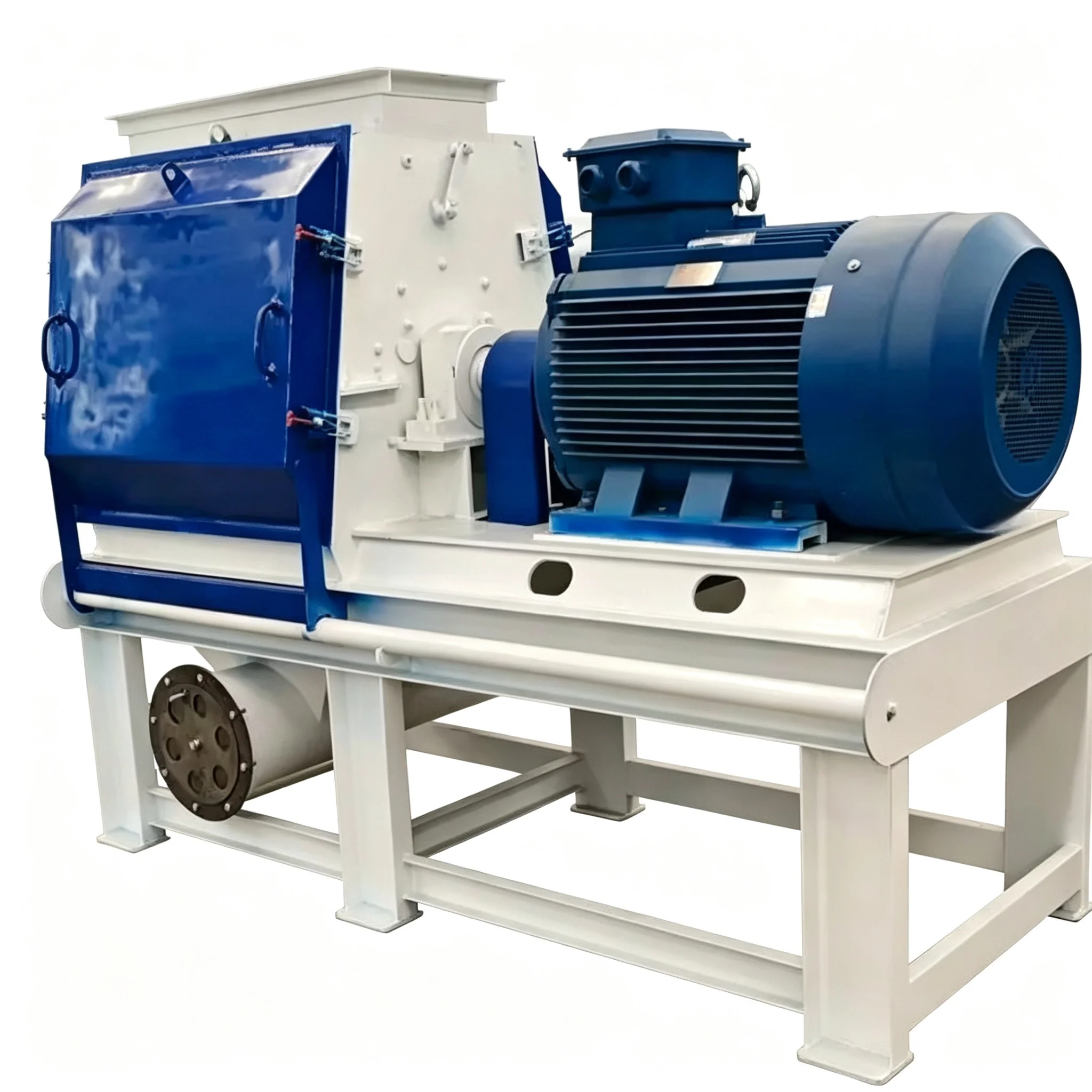

GLT650×1000 Hammer Mill

PRODUCT PARAMETERS

  • Model: GLT650×1000 Hammer Mill
  • Main Motor Power: 90-110kW
  • Actual Capacity: 3-5Ton/Hour
  • Hammer Quantity: 96 pcs
  • Output Particle Size: 6-14 mm (change screens)
  • Dimension(L×W×H): 2150×1200×1600 mm
  • Power Supply: 380V/50Hz, customizable
  • Standard Accessories: Main host, electric control cabinet
Description
FAQs
Request A Quote

Description

Product Overview

GLT650×1000 hammer mill is high‑capacity 65‑series model with widened rotor and more hammers. Perfect match for 700 biomass pellet mill for medium‑size pellet plants. Supports 20‑hour continuous operation. Excellent adaptability for high‑fiber palm and straw materials. Mainly exported to medium‑scale projects in Southeast Asia, Russia and Latin America.

Technical Specifications

ItemGLT650×1000
ModelGLT650×1000 Hammer Mill
Main Motor Power90kW
Actual Capacity3-5Ton/Hour
Hammer Quantity96 pcs
Output Particle Size6-14 mm (change screens)
Dimension(L×W×H)2150×1200×1600 mm
Power Supply380V/50Hz, customizable
Standard AccessoriesMain host, electric control cabinet

Application: Medium‑size biomass pellet plant, palm oil mill waste treatment, straw comprehensive‑utilization project, supporting 700 pellet production line.

FAQs

Our pellet mill processes wood sawdust, wood chips, straw, rice husk, peanut shell, bamboo dust, fruit tree branches and other biomass waste. Different dies are available for various feedstock. Raw materials should be crushed to 3‑5 mm with moisture 10‑15% for premium‑quality pellets. A dryer is required for high‑moisture materials.

o prepare an accurate proposal, please provide:

1.raw material type; 2. target output per hour; 3.raw‑material moisture; 4. local voltage & frequency; 5. workshop size; 6.budget.

Our engineers supply equipment list, layout drawing and budget for free. Material test is available at our factory.

Yes. Motors can be customized to match local voltage & frequency (380V/415V/440V, 50Hz/60Hz) for different countries.

We are direct manufacturer with full‑set machining & assembly workshop. Factory visits are warmly welcome; virtual video tour is available. Material test run is supported.

Common wear parts are in stock and can be shipped together with main machine. For separate orders: air freight 7‑15 days, sea freight 30‑45 days.
