GLT1000‑1600 Large Hammer Mill

PRODUCT PARAMETERS

  • Model: GLT1000‑1600 Hammer Mill
  • Main Motor Power: 160kW/200kW
  • Fan Motor Power: 45kW
  • Actual Capacity: 8.0‑12.0 Ton/Hour
  • Hammer Quantity: 120 pcs
  • Output Particle Size: 6-14 mm (change screens)
  • Dimension(L×W×H): 3600×1700×2350mm
  • Power Supply: 380V/50Hz, customizable
  • Standard Accessories: Main host, electric control cabinet
Description
FAQs
Request A Quote

Description

Product Overview

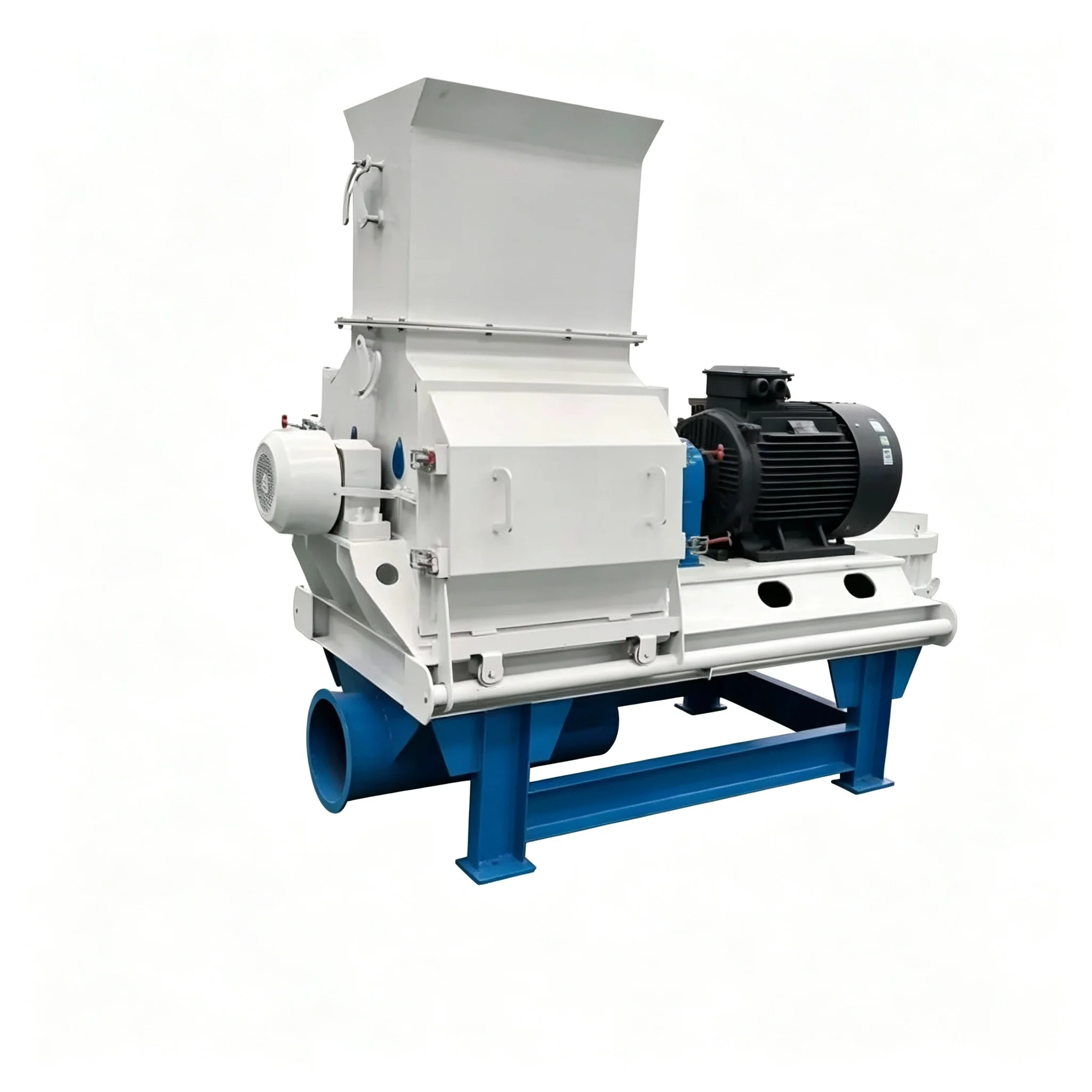

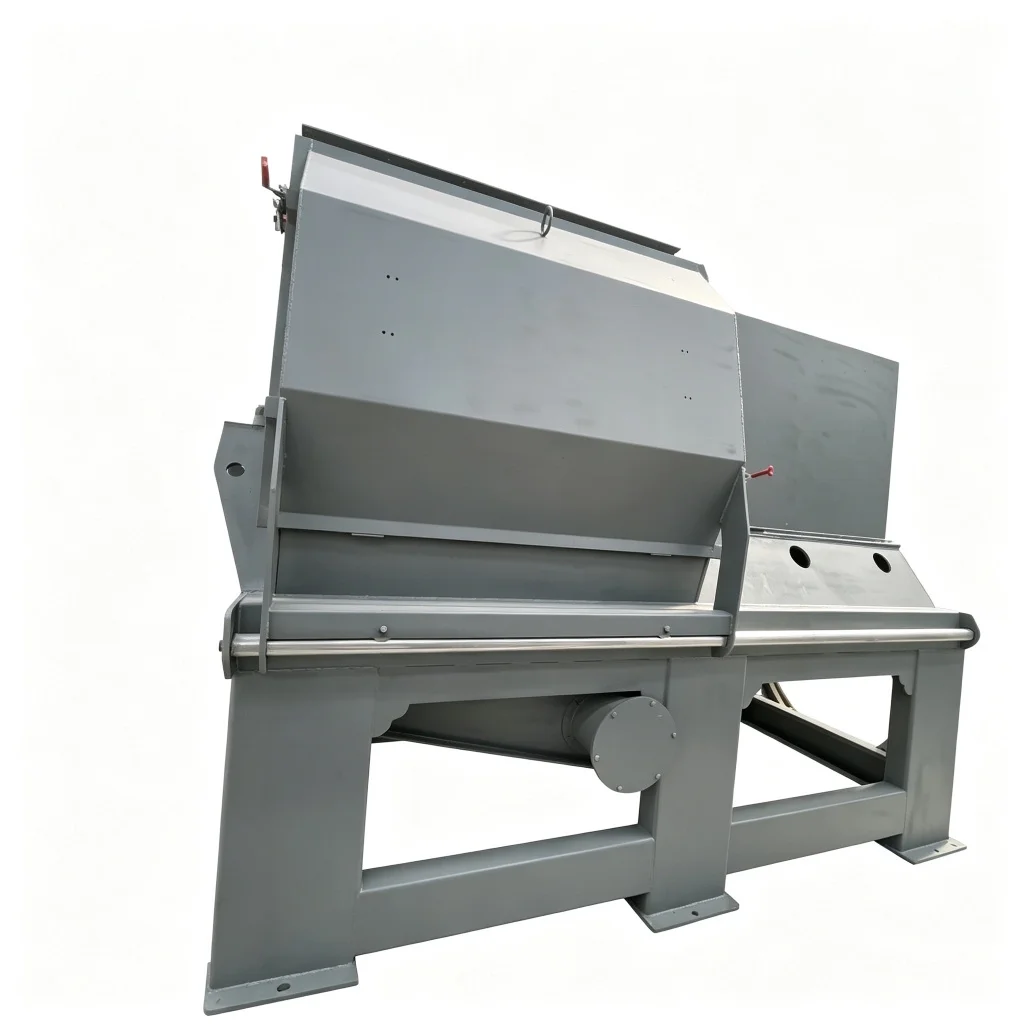

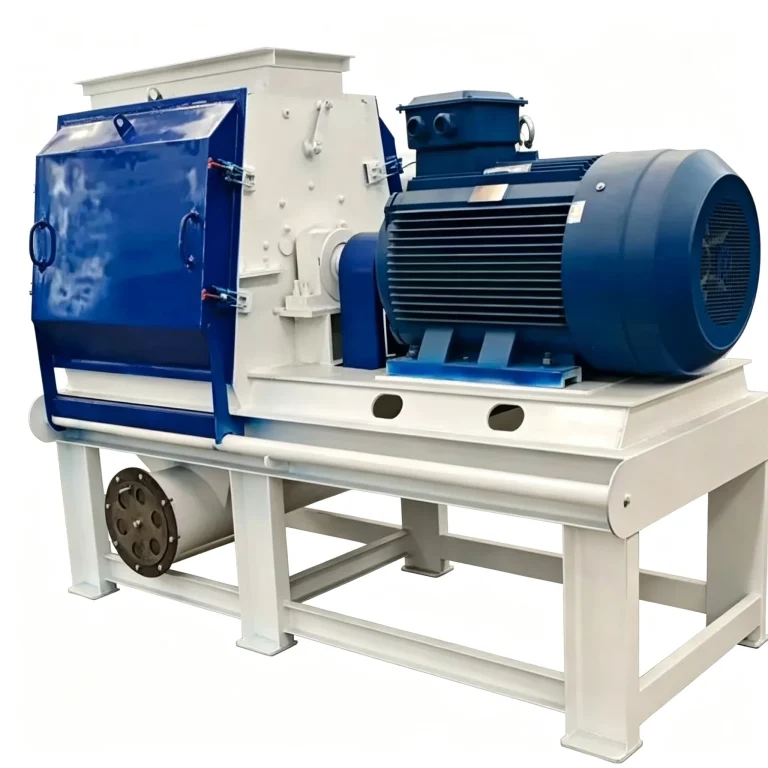

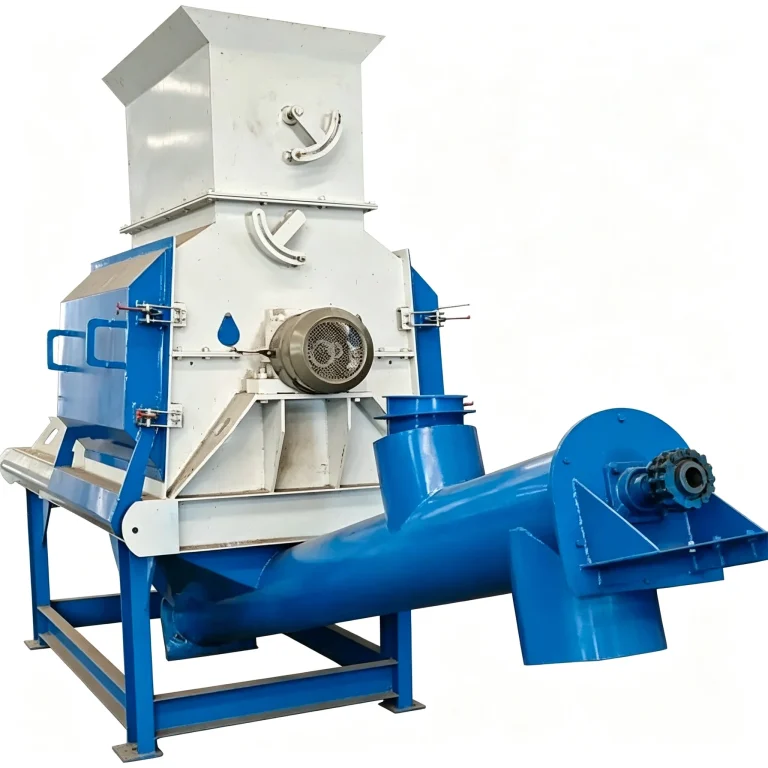

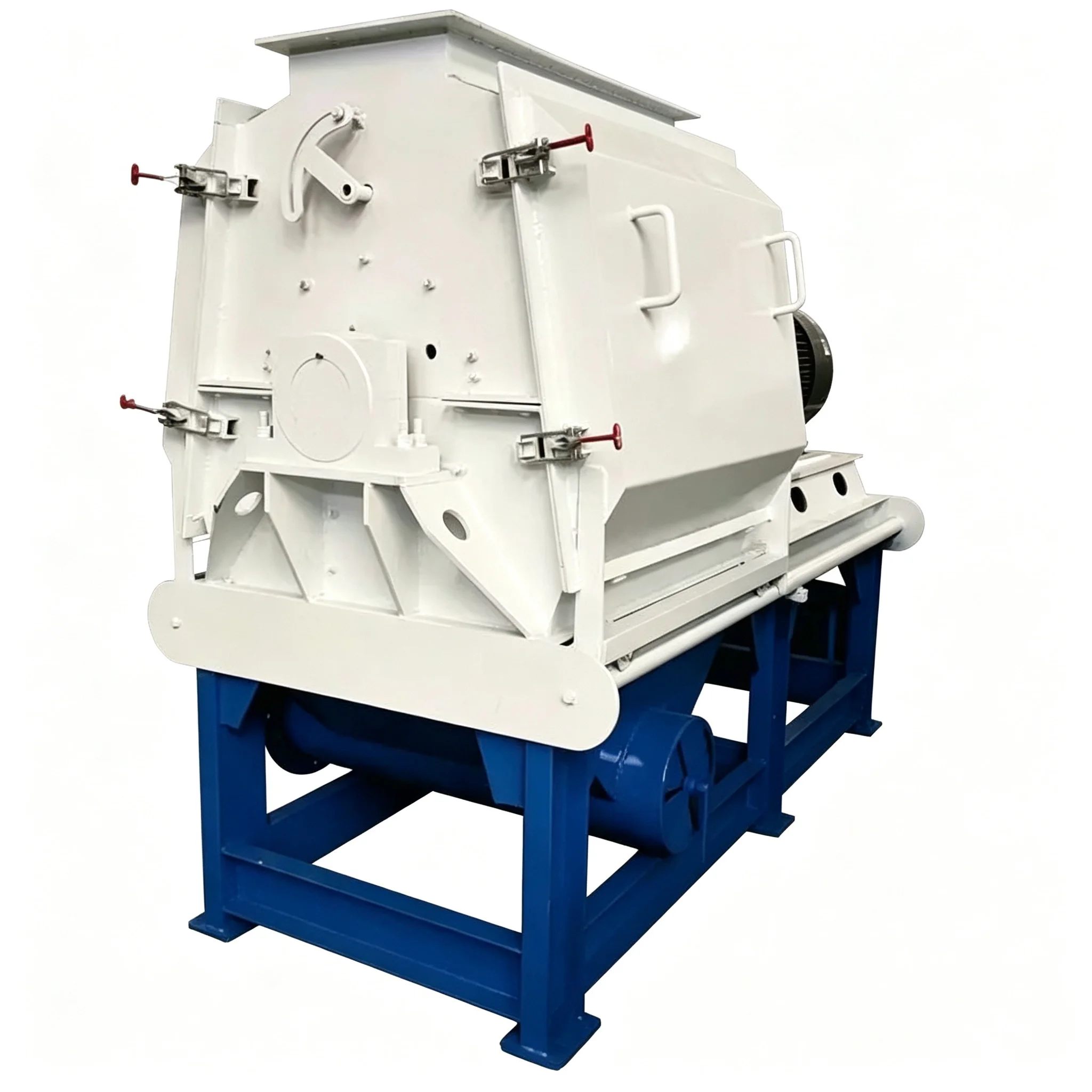

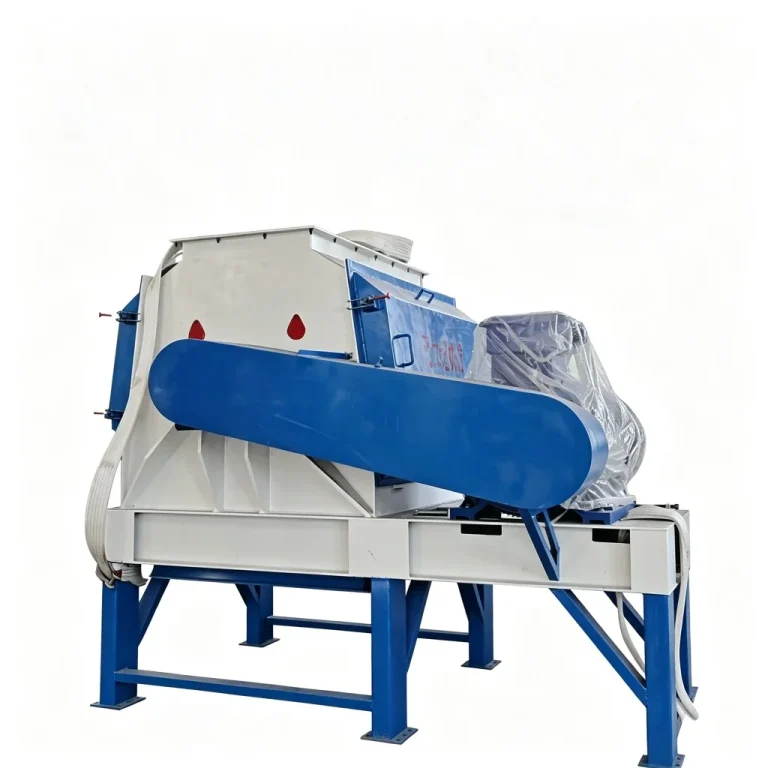

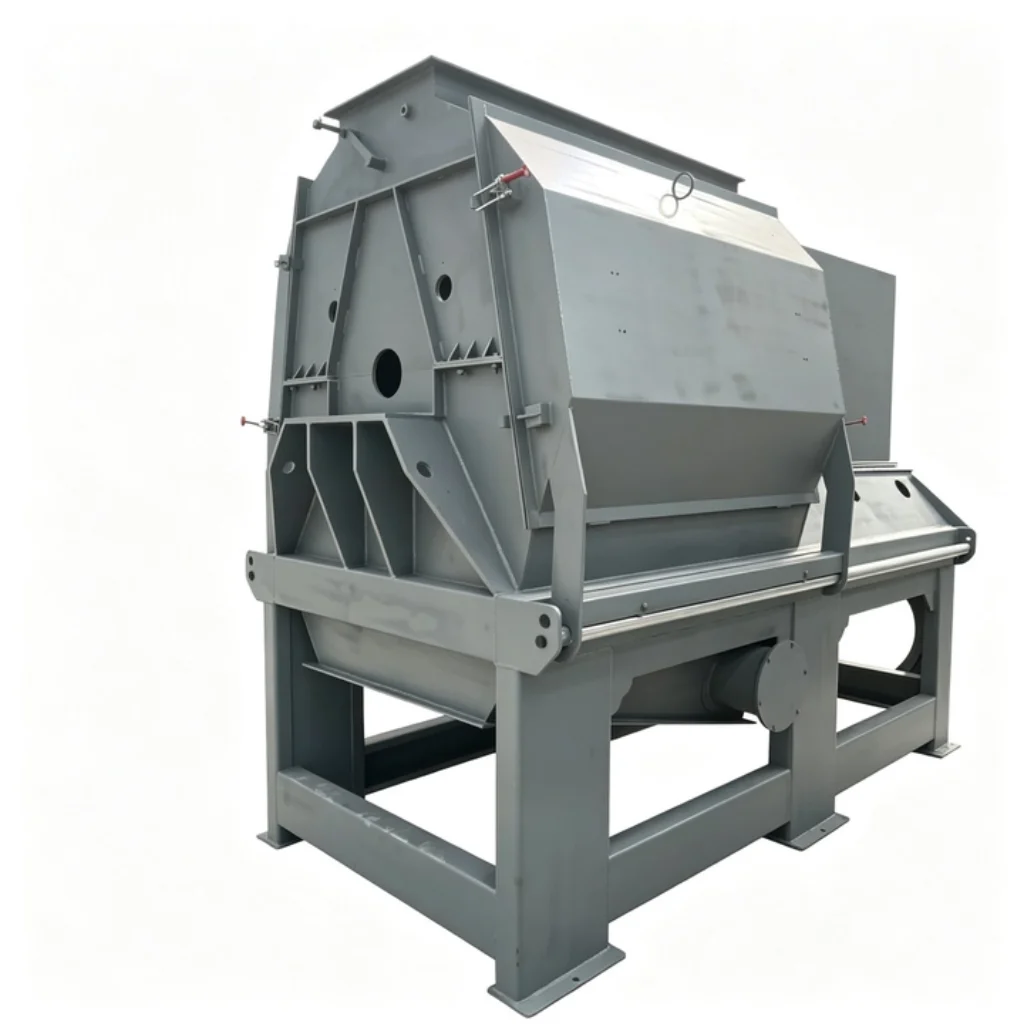

GLT1000‑1600 extra‑large industrial hammer mill adopts large‑diameter rotor and over‑size crushing chamber with heavy‑duty construction. Serves 10 000‑ton‑level large biomass plants as shared pre‑crushing host for multiple 850 pellet mills. It processes big‑size wood chips, branches, bark and palm waste for round‑the‑clock full‑load continuous operation. Mainly applied for mega‑size projects in Russia, Eastern Europe and Southeast Asia.

Technical Specifications

表格

ItemGLT1000‑1600
ModelGLT1000‑1600 Hammer Mill
Main Motor Power160kW/200kW
Fan Motor Power45kW
Actual Capacity8.0‑12.0 Ton/Hour
Hammer Quantity120 pcs
Output Particle Size6-14 mm (change screens)
Dimension(L×W×H)3600×1700×2350mm
Power Supply380V/50Hz, customizable
Standard AccessoriesMain host, electric control cabinet

Application: 10k‑ton‑level large biomass energy plant, comprehensive large palm processing factory, shared crushing section for multi‑unit pellet production lines.

FAQs

Our pellet mill processes wood sawdust, wood chips, straw, rice husk, peanut shell, bamboo dust, fruit tree branches and other biomass waste. Different dies are available for various feedstock. Raw materials should be crushed to 3‑5 mm with moisture 10‑15% for premium‑quality pellets. A dryer is required for high‑moisture materials.

o prepare an accurate proposal, please provide:

1.raw material type; 2. target output per hour; 3.raw‑material moisture; 4. local voltage & frequency; 5. workshop size; 6.budget.

Our engineers supply equipment list, layout drawing and budget for free. Material test is available at our factory.

Yes. Motors can be customized to match local voltage & frequency (380V/415V/440V, 50Hz/60Hz) for different countries.

We are direct manufacturer with full‑set machining & assembly workshop. Factory visits are warmly welcome; virtual video tour is available. Material test run is supported.

Common wear parts are in stock and can be shipped together with main machine. For separate orders: air freight 7‑15 days, sea freight 30‑45 days.
