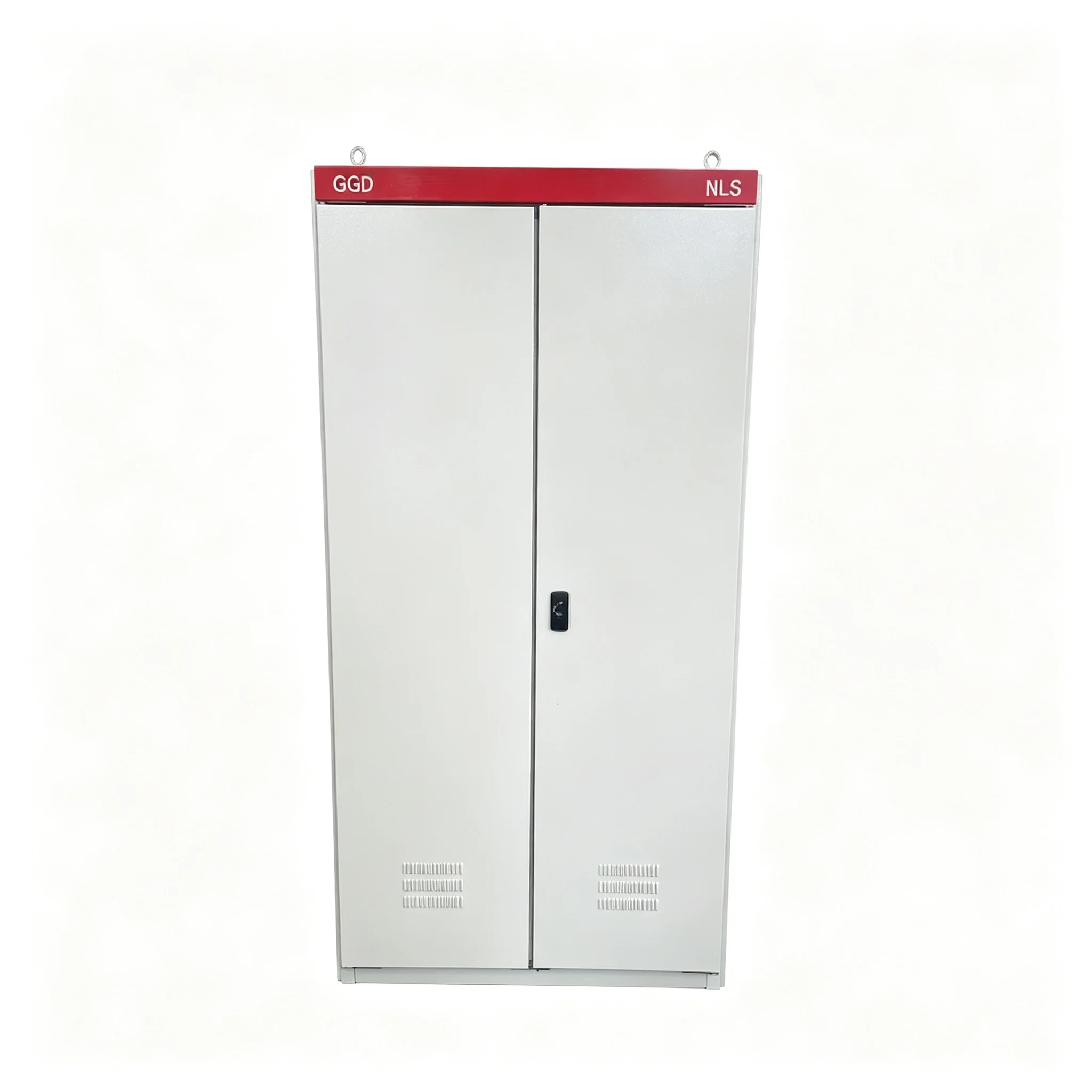

Electrical control cabinet

PRODUCT PARAMETERS

  • Control Core: PLC + Industrial touch‑screen HMI
  • Main Voltage: AC380V‑415V 50/60Hz
  • Control Voltage: DC24V
  • Protection Grade: IP54
  • Main Electric Components: Schneider / Siemens (optional)
  • Function: Overload, short‑circuit, phase‑loss, interlock protection, fault alarm
  • Optional Function: VFD frequency drive, remote monitoring, data recording
  • Applicable Line Capacity: 1‑30 t/h biomass pellet plant
  • Cabinet Material: Cold‑rolled steel plate, anti‑corrosion coating
Description
FAQs
Request A Quote

Description

Product Introduction

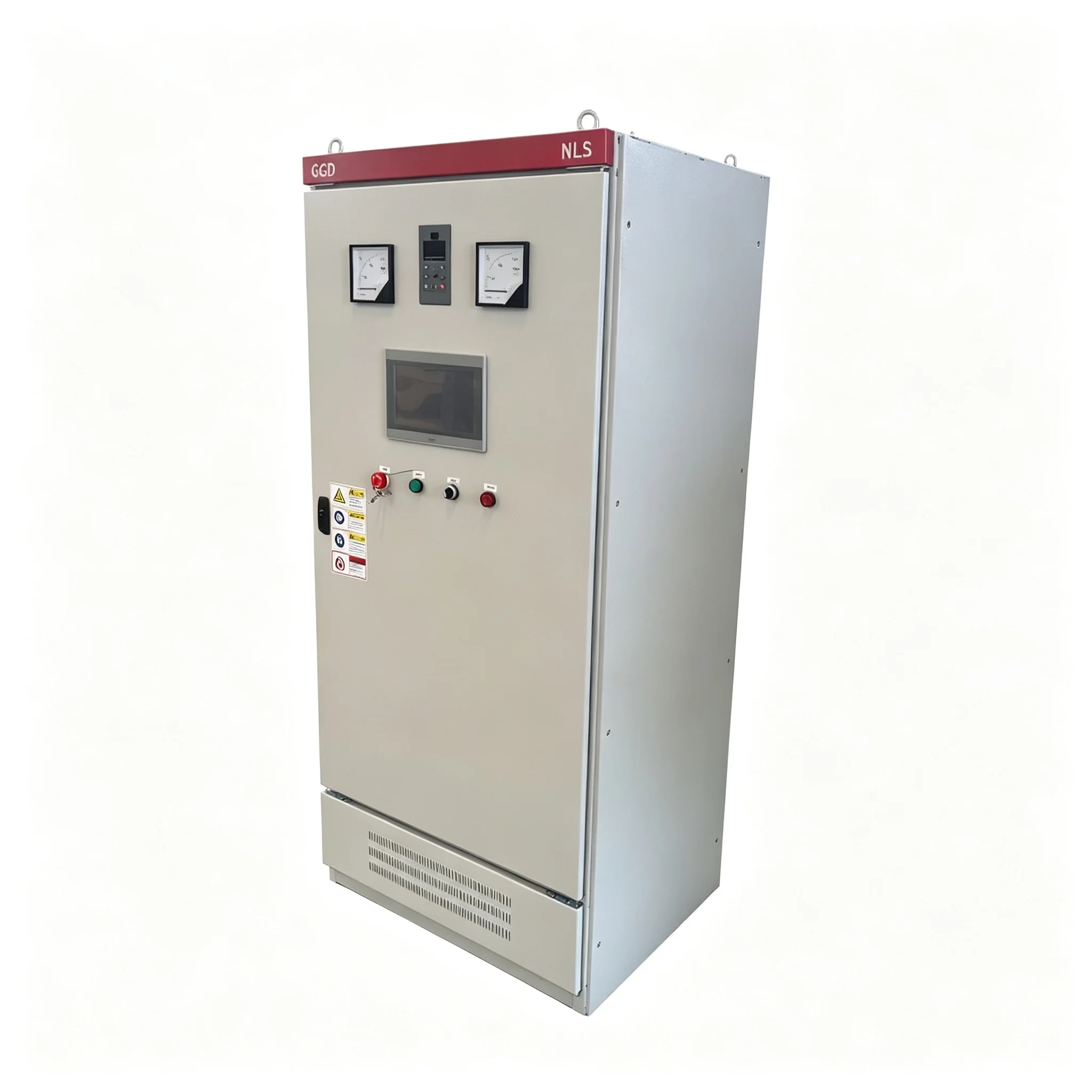

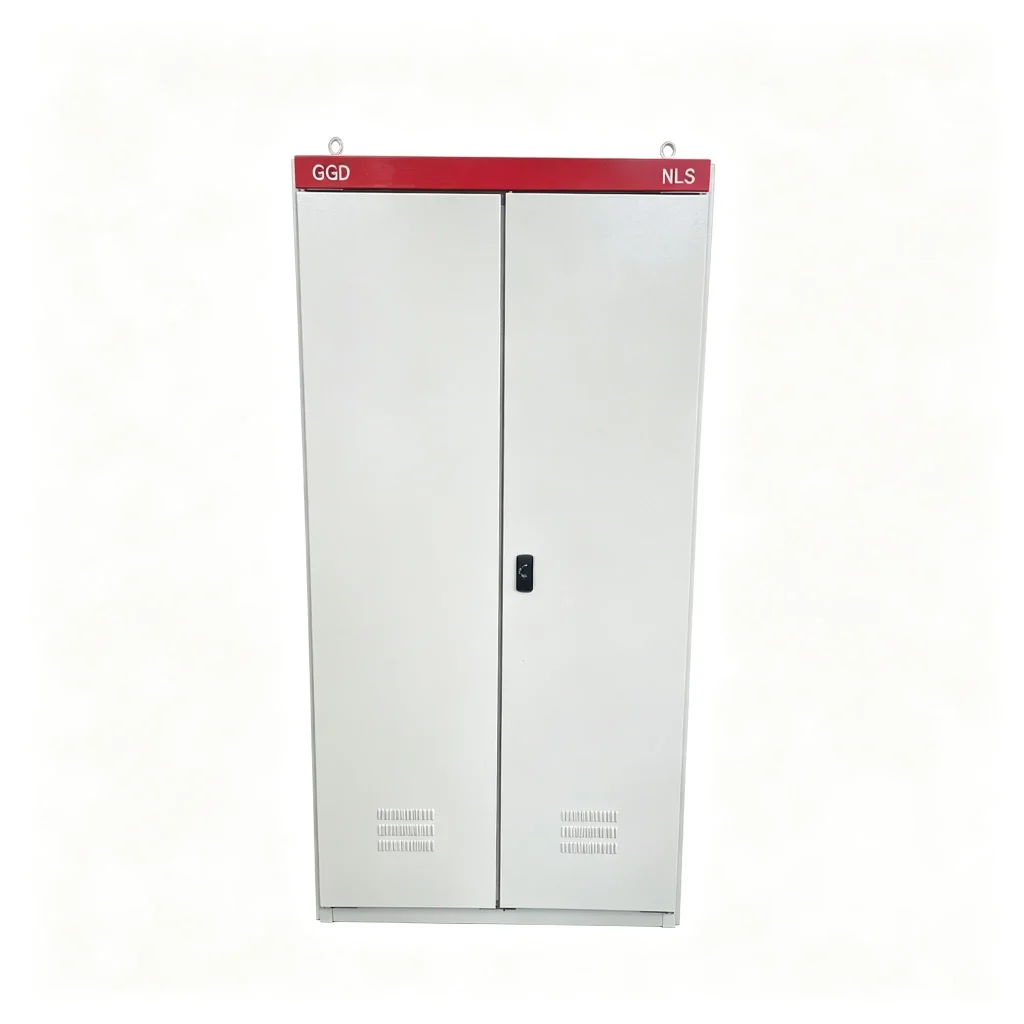

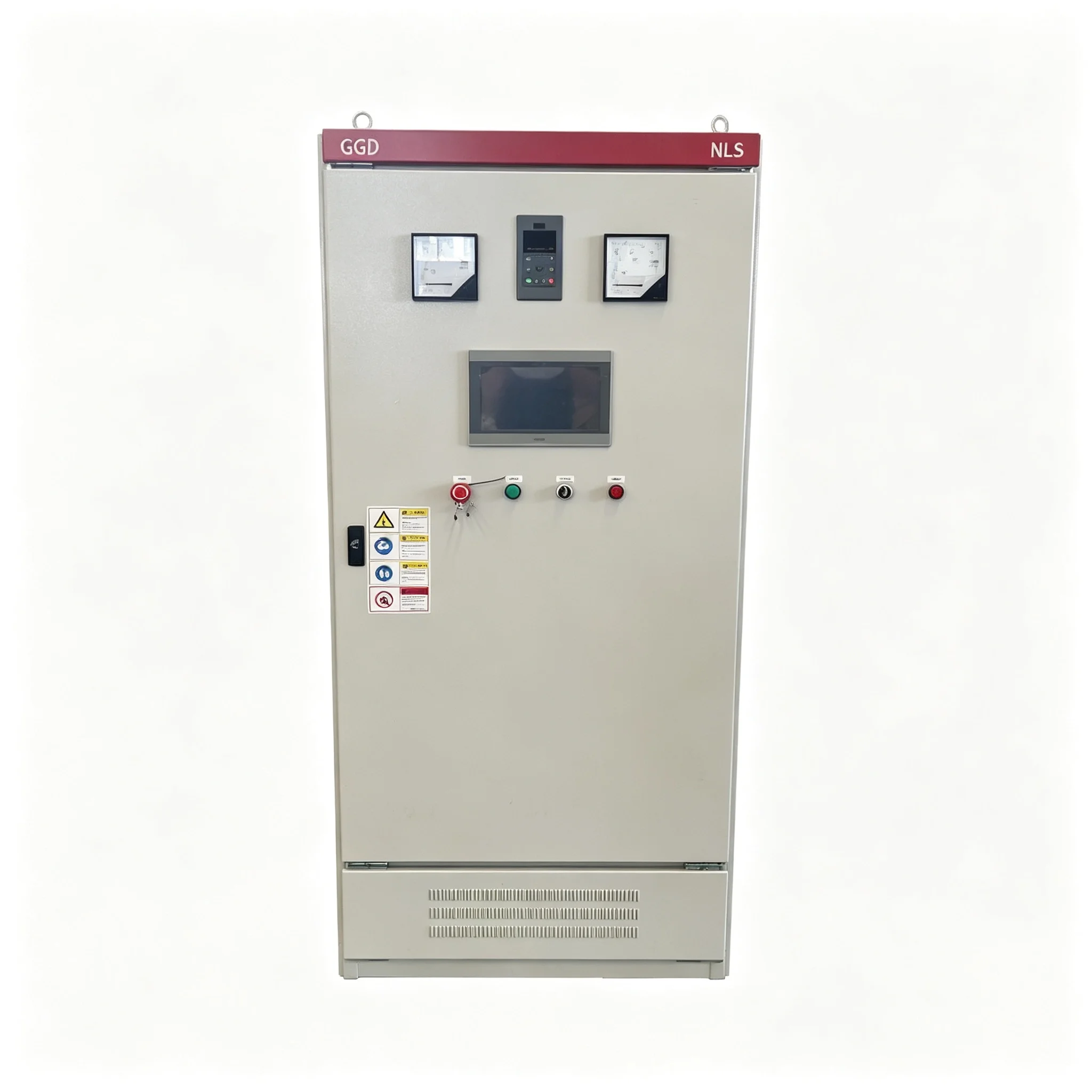

Our electrical control cabinet is the central control brain for biomass pellet production lines, adopting imported PLC‑touch screen HMI. It realizes centralized automatic control for pellet mill, dryer, cooler, conveyors and packing machines.

Equipped with complete overload, over‑current, phase‑loss and short‑circuit protection, it supports interlock protection for whole‑line equipment. Real‑time monitoring, automatic fault diagnosis and audible‑visual alarm help operators quickly locate failures. Main electric components adopt Schneider / Siemens brands for stable long‑time industrial running.

Support VFD frequency conversion control for feeding & conveying equipment. Optional remote monitoring function. Modular cold‑rolled steel cabinet with dust‑proof IP54 protection grade. Custom‑designed according to line capacity from 1‑30t/h. It supports single‑machine control or full‑turnkey pellet plant automation solution.

Meta Title: PLC Electrical Control Cabinet | Touch‑Screen Control Panel for Biomass Pellet Plant Meta Description: Custom PLC electrical control cabinet for biomass pellet production line. Schneider/Siemens components, fault alarm, interlock protection, full‑line automatic control. Get quotation.

Product Parameters

ItemSpecification
Control CorePLC + Industrial touch‑screen HMI
Main VoltageAC380V‑415V 50/60Hz
Control VoltageDC24V
Protection GradeIP54
Main Electric ComponentsSchneider / Siemens (optional)
FunctionOverload, short‑circuit, phase‑loss, interlock protection, fault alarm
Optional FunctionVFD frequency drive, remote monitoring, data recording
Applicable Line Capacity1‑30 t/h biomass pellet plant
Cabinet MaterialCold‑rolled steel plate, anti‑corrosion coating

FAQs

Our pellet mill processes wood sawdust, wood chips, straw, rice husk, peanut shell, bamboo dust, fruit tree branches and other biomass waste. Different dies are available for various feedstock. Raw materials should be crushed to 3‑5 mm with moisture 10‑15% for premium‑quality pellets. A dryer is required for high‑moisture materials.

o prepare an accurate proposal, please provide:

1.raw material type; 2. target output per hour; 3.raw‑material moisture; 4. local voltage & frequency; 5. workshop size; 6.budget.

Our engineers supply equipment list, layout drawing and budget for free. Material test is available at our factory.

Yes. Motors can be customized to match local voltage & frequency (380V/415V/440V, 50Hz/60Hz) for different countries.

We are direct manufacturer with full‑set machining & assembly workshop. Factory visits are warmly welcome; virtual video tour is available. Material test run is supported.

Common wear parts are in stock and can be shipped together with main machine. For separate orders: air freight 7‑15 days, sea freight 30‑45 days.
